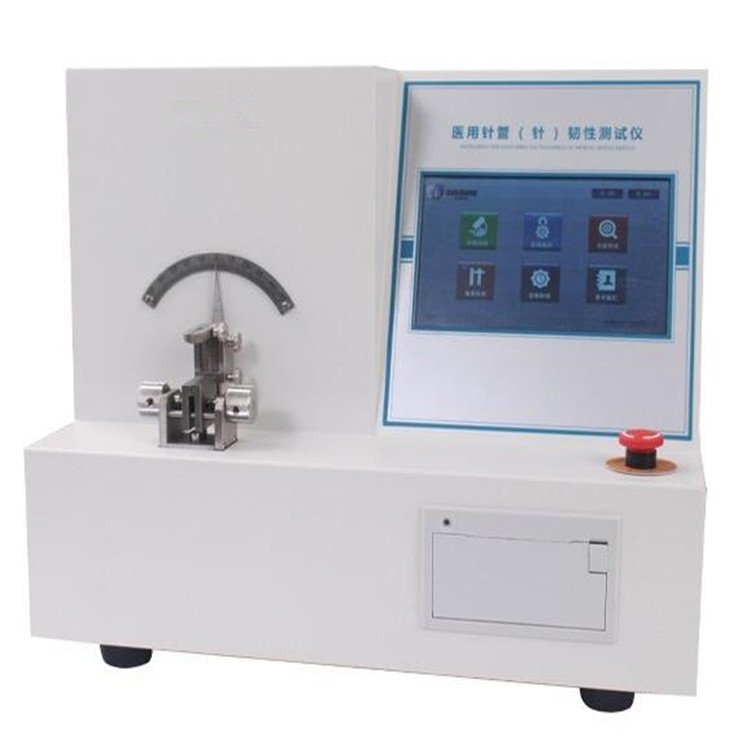

医療用針靭性試験器

Product introduction

　　It is specially used for the toughness determination of hard straight stainless steel

needles and other medical devices used in human skin, subcutaneous, muscle and vein

injection needles, also known as injection needle toughness tester, medical needle

toughness tester, etc. The testing instrument has a high degree of automation. After the

tested object is installed, the user can automatically complete all the operations by just

pressing the operation key.

Meet the standard

　　GB18457 "Stainless Steel needle tube for manufacturing medical devices",

GB15811 "disposable sterile injection needle".

Technical parameter

　　1. Tube wall normal wall, thin wall, ultra-thin wall three options

　　2. Nominal size: 0.3-3.4mm

　　3. Test frequency: 0.5HZ

　　4. Bending Angle: 15°, 20°, 25° three positions, switch set bending Angle, 4 high

brightness LED display

　　5. Bending distance: 8-31.5MM, accuracy 0.1mm（10 specifications）

　　6. Number of experiments: 20 times of bidirectional application

　　7. Net weight: 10KG

　　8. Dimensions: 300x200x270
