Carton drop tester

標準:

GB/T4857.5. 1S02248. ASTM D5276. etc.

Product introduction:

It is mainly used to simulate the impact of the drop impact on the packaging during

transportation and loading and unloading to identify the impact strength of the packaging

and the rationality of the packaging design. The vertical impact test of the transport package

by free drop can be freely selected in advance of the three states of surface, edge and Angle

drop test, the drop height can be preset, when the test piece rises to the preset height, it can

be automatically positioned, and the drop height can be preset. The release mechanism is free,

flexible and reliable, ensuring that the specimen is not affected by any external force during

the release moment and free fall, thus ensuring the required drop state of the specimen. Strong

structure scientific and reasonable, safe and reliable use.

Product Advantages:

Accurate and Repeatable Testing: Provides consistent and reliable results for evaluating packaging performance.

Simulates Real-World Conditions: Mimics the impacts experienced during shipping and handling, allowing for realistic assessment.

Identifies Weaknesses: Helps pinpoint vulnerabilities in packaging design and construction.

Ensures Product Protection: Confirms that packaging can adequately protect its contents from damage.

Supports Standards Compliance: Enables testing according to recognized industry standards (GB/T4857.5. ISO 2248. ASTM D5276. ISTA).

Improves Packaging Design: Provides data to optimize packaging for strength and cost-effectiveness.

製品特徴：

Based on the provided information, typical features of a Carton Drop Tester include:

Adjustable drop height, allowing for varying impact severities (e.g., 300mm to 1500mm).

A robust release mechanism that ensures a free and consistent drop, without external influence on the test specimen.

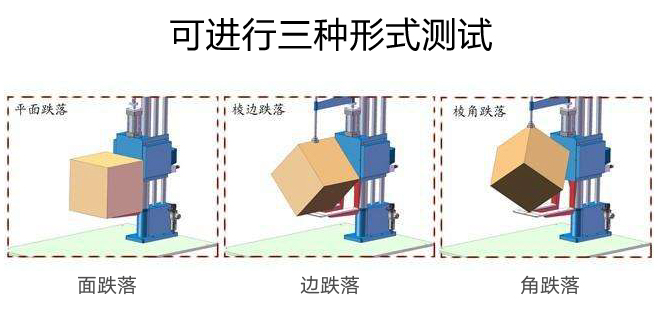

Capability to perform surface, edge, and corner drop tests to simulate diverse handling scenarios.

A rigid and level impact surface made of steel or concrete to ensure consistent impact conditions.

A lifting mechanism (often motorized or pneumatic) to raise the test specimen to the desired drop height.

Precise height adjustment and measurement for repeatable testing.

A sturdy frame capable of supporting various package sizes and weights.

Some models may include digital controls, touch-screen interfaces, and data logging capabilities.

Safety features to protect the operator and prevent damage to the equipment.

Technical parameter:

1. Drop height: 300mm——1500mm(adjustable)

2. Larger sample weight: 70kg

3. Larger sample size: 800mmx800mmx800mm

4. Impact panel size: 1700mmx1200mmx14mm

5. Motor power: 1.85KW

6. Overall size: 1700mm(L)x1200mm(W)x2350mm(H)

7: Net weight: about 600kg

8: Power supply: AC 380V 50Hz
