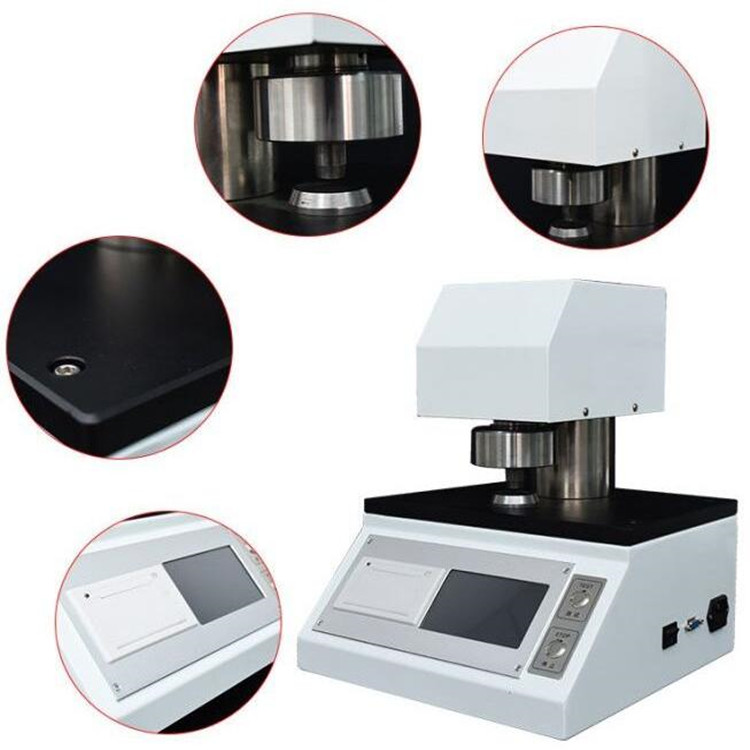

Paper thickness tester

製品紹介：

Paper thickness tester is suitable for measuring the thickness of various paper （including toilet paper）， cardboard, corrugated cardboard, tobacco sheet, plastic film and other sheet materials.

Meet the standard:

ISO534, GB/T451.3, GBT24328.2, QB/T1055

Product Advantages:

Measures Fundamental Property: Accurately quantifies thickness, a key characteristic for material specification and quality control.

Versatile Material Application: Suitable for a wide range of sheet materials beyond just paper and board, including films, foils, and textiles.

Standard Compliant: Designed to meet relevant national and international standards for thickness measurement.

High Accuracy and Precision: Offers high accuracy and fine resolution for reliable measurements, particularly important for thin materials.

Automated Testing: Automatic test completion enhances efficiency and reduces operator influence on results.

Data Processing and Reporting: Integrated statistical functions and printer output facilitate immediate analysis and documentation.

User-Friendly Operation: Touch screen interface simplifies setup and use.

Technical features:

Chinese touch screen display, friendly man-machine interface operation, automatic completion of the test, with the test data statistical processing function, micro printer output.

Technical parameters:

Measuring range: （0——5） mm （measuring paper, sheet）， （0——20） mm （measuring cardboard）

Accuracy: ±0.001mm or ±0.5%

Flatness of two measuring surfaces: ≤0.001mm

Test contact area: （2±0.05）cm², （10±0.2）cm²

Contact pressure （can be set arbitrarily） : （0.5-500）kPa, （0.1-100）kPa

Test speed: ≤3mm/s

Weight: About 20kg

Power supply: AC220V, 50Hz

Dimensions: 330×340×350mm
