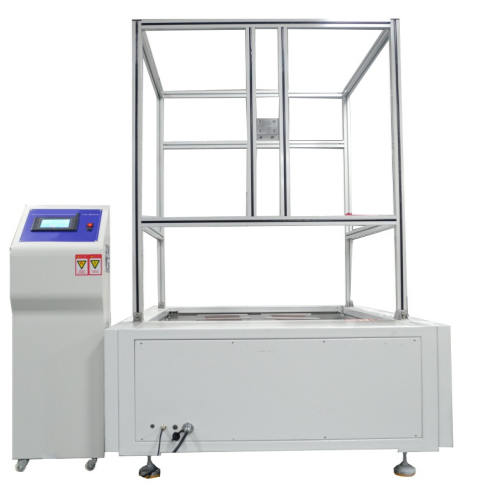

Luggage Walked Wear Test Machine

製品紹介：

This product is used for suitcases, bags, strollers with wheels… Through the test mileage and test speed, to check the heat resistance, rupture and loss of the suitcase wheel, to detect the wear resistance of the wheel material and whether the overall structure of the box is damaged and deformed, the test results can be used as a reference for improvement.

適用：

Luggage Walked Wear Test Machine simulating the situation when luggage moves and keep it in continuous testing, is to test the quality of wheels, axle, wheel frame, tie rod and luggage, calculate and evaluate the wear value of wheels. Put moderate weights in the testing sample. When the conveyor belt travels, the friction plate and the sample wheel will collide and rub with each other, and the sample is subjected to shock oscillation and wear.

According to standard:

QB/T 2920-2010

仕様：

Test speed: 0 —— 5km/hr adjustable

Time setting: 0 —— 999.9 hours, power failure memory type

Bump plate: 5mm/8 pieces

Belt circumference: 380cm

Belt width: 76cm

Accessories: luggage fixed adjusting seat

Machine size: 220×180×160cm

Weight: 500Kg

Power supply: 1 #, 220V/50HZ
