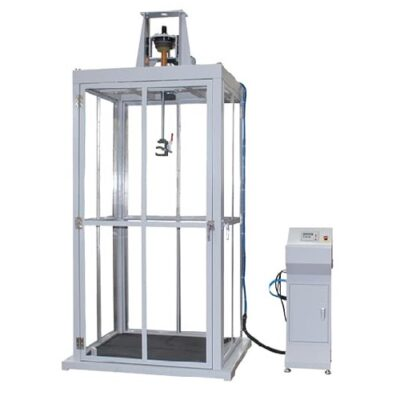

Suitcases Vibration Impact Tester

Luggage vibration impact testing equipment:

loading the prescribed load in the luggage, lifting the luggage to the prescribed stroke through the handle, the back strap (or the fully opened tie rod), making free falling motion under the action of gravity (the tie rod test adopts uniform motion), and then through the absorption and release of the impact force by the spring, the luggage is subjected to shock and oscillation, so as to test the anti-oscillation impact of the handle, the back strap, the tie rod and the luggage (package). This instrument is suitable for all kinds of bags and suitcases.

Meet the criteria:

QB/T 2922 2007,

QB/T 1333 2010

QB/T 2922-2018,

QB/T 5083-2018,

QB/T 1333 - 2018

製品紹介：

This machine is used to test the shock resistance of various luggage handles, car stitches and overall structure. The method is to load the specified load on the object, and do the durability test on the specimen at the speed of 30 times per minute and the amplitude of 5 —— 10cm. The test results can be used as a reference for quality improvement.

Technical parameters:

Impact height: 150mm

Vibration mode: spring type

Spring constant: 17.54±0.88N/mm

Test speed: 5 —— 30 times/min adjustable

Number of Settings: 1 —— 999999, reach the set number of automatic stop

Machine size: 1200×1000×2500㎜

Machine weight: about 300Kg

Power supply: 1φ, 220V/50Hz

Auxiliary function: with infrared automatic sensor, the test piece will automatically stop when it falls
