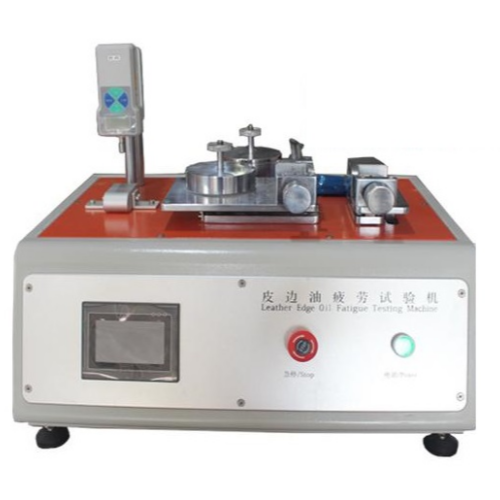

Leather edge oil fatigue testing machine

製品紹介：

Leather edge oil is made of polyvinyl chloride and other resins, used to coat leather, recycled leather, artificial/a colored semi-liquid material, made of polyurethane resin and the cut edge or edge of leather, synthetic leather, to modify and aesthetically. The product was kneaded at a certain frequency under a certain load to test the fatigue resistance of the sample epithelial edge oil at room temperature. Edge oil fatigue tester Rolling fatigue tester shall include the components specified below. The sample fixing device comprises a pair of sample clips, one of which may move in a left or right direction and the other in a forward or backward direction. The load-bearing loading device is connected with the sample clip moving left and right, and can load the load weight as needed. When the weight is not loaded, the sample clip is not stressed and can move freely left and right.

According to the criteria:

QB/1333-2018,QB/ 1618-2018,QB/T 5246-2018.

目的:

Edge oil fatigue resistance test.

Technical parameters:

1 Longitudinal loading mode: 200G-5000G weight superimposed load structure must be used.

2 Lateral travel: 0-50mm adjustable;

3 Fixture height: 45mm;

4 Transverse speed: 0-120±1 time/min

5 Controller: touch screen control, can set eight digit count, speed control mode
