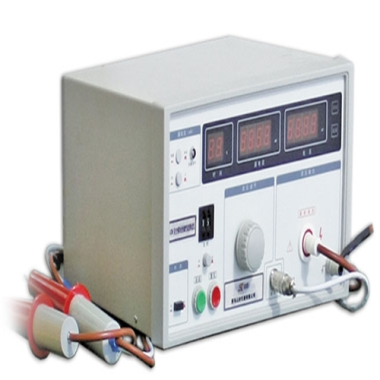

Safety Helmet Electrical Insulation Tester

製品紹介：

Safety hat electrical insulation performance tester used to test the electrical insulation performance of safety hat, high degree of automation, easy to operate, widely used in safety hat manufacturers and major quality inspection units.

Meet the standard:

GB/T2812-2006 Safety helmet test method

GB/T2811-2007 Safety helmet

Product Advantages:

Measures Critical Safety Property: Quantifies the electrical insulation capability of safety helmets, essential for protecting wearers from electrical hazards.

Standard Compliant: Designed to meet relevant national standards (GB/T 2812. GB/T 2811) for safety helmet electrical testing.

High Automation: Features a high degree of automation, making the test process more efficient, consistent, and easier for the operator.

Objective Quantitative Results: Provides digital readouts of current and voltage with specified accuracy.

Plastic Sink: Eliminates potential issues related to the conductivity of the test sink, ensuring accurate measurements.

Configurable Test Head: Allows customization of the test electrode to accommodate different helmet types or test needs.

Widely Used: Adopted by manufacturers and testing laboratories in the safety helmet industry.

製品特徴：

Plastic sink or water bath system designed to contain water and accommodate the safety helmet for testing in a wet condition, without interfering with electrical measurements.

Electrodes for applying high voltage to the safety helmet, including a probe with a specific diameter (4mm) and hemispherical top.

LED digital display providing real-time readouts of current and voltage values during the test.

Capability to apply high voltage according to a specific sequence: increasing the voltage to 1200V ± 25V within 1 minute and maintaining it for 15 seconds.

Voltage regulator with a range of 1500V to control the applied voltage.

Built-in timer to control the duration of the high-voltage application, with a specified error ($\pm$1%).

Accurate measurement of current and voltage, with expression value errors of $\pm$1%.

Configurable test head die or electrode to meet various helmet testing requirements.

High level of automation for the test procedure.

Safety features (implied for high voltage testing) to protect the operator.

Technical features:

1, plastic sink, to solve the conductive stainless steel and metal sinks and other problems

2, LED digital display current, voltage value

3, Electrical insulation test head die can be configured according to customer requirements

Technical parameters:

1, the current expression value error of ±1%

2, voltage value error ±1%

3, timer value error ±1%

4, the diameter of the probe is 4mm, the top is hemispherical

5, The voltage is increased to 1200V±25V within 1min and maintained for 15s

6, voltage regulator: range 1500V
