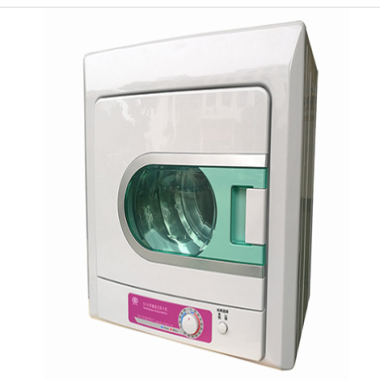

Tumble dryer

The Tumble Dryer is designed for textile testing applications, specifically for home laundering and drying procedures. It provides a controlled drying environment for textile samples, ensuring accurate and repeatable results. The dryer is suitable for laboratory use in compliance with national and international textile testing standards, offering precise temperature control, stable drum rotation, and consistent drying performance.

Application

Used in textile laboratories for drying samples following home laundering and drying procedures, including domestic textiles, garments, and other fabrics requiring standardized drying tests. Ideal for evaluating dimensional stability, shrinkage, and fiber integrity after washing.

Standards

GB/T 8629: Domestic textile drying procedures
ISO 6330: Textiles — Domestic washing and drying procedures for textile testing

Feature

(1) Front-loading design with horizontal drum for uniform drying.
(2) Drum diameter of 58 cm ±1 cm with three lifting pieces spaced 120° for even tumbling.
(3) Controlled outlet air temperature below 80°C to prevent fiber damage.
(4) Rated drying capacity of 5 kg suitable for standard test specimens.
(5) Stable drum speed at 50 r/min for consistent drying results.
(6) Compact, space-saving design for laboratory benchtop use.
(7) Reliable AC220V / 50Hz power supply with 1.25 kW consumption.

Technical Specifications

Accessories

Included: Drum, lifting pieces, power cable, user manual.
Optional: Additional sample racks or load balancing accessories for specialized tests.

Operation & Maintenance

(1) Ensure the drum is empty and free of debris before starting.
(2) Load textile samples evenly to maintain balance.
(3) Set drying temperature and cycle according to test standard.
(4) Start the dryer and monitor for uniform drum rotation.
(5) Avoid exceeding 5 kg drying capacity.
(6) Clean the drum and lifting pieces after each use.
(7) Inspect electrical connections regularly.
(8) Ensure outlet air path is unobstructed.
(9) Perform annual maintenance check for motor and heating element.
